Let’s talk about the importance of silicon nitride (SiNx) in chips 3m silicon nitride
Why does silicon nitride play an important function in chips? Assess the advantages of silicon nitride contrasted to various other materials.
In chip production, there is a product that plays a vital duty, that is silicon nitride (SiNx). Although it might not obtain the very same interest as various other much more widely known semiconductor products such as silicon (Si), gallium arsenide (GaAs) or gallium nitride (GaN), its relevance is self-evident. Most chips will use this material.

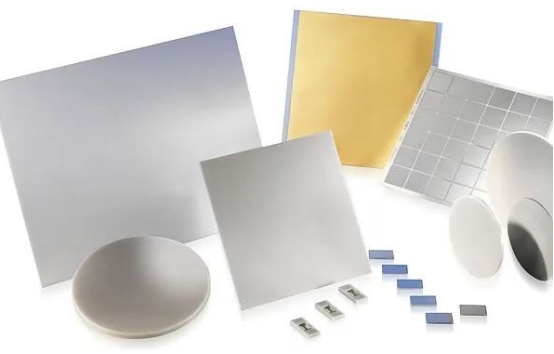

(Application of silicon nitride in chips)
1. Why is it SiNx?
Careful close friends have seen that I utilized SiNx when creating the chemical formula of silicon nitride. Pals that have examined high school chemistry should know that N is the fifth major team aspect. Logically, the valence needs to be -3, while the chemical valence of silicon is +4. The chemical formula of silicon nitride must be Si3N4. Exactly how can it be SiNx?
First, allow’s speak about the multivalent state of nitrogen: nitrogen has multiple valence states, primarily since it has 5 valence electrons, and nitrogen atoms can share these electrons in different ways. Nitrogen can create various valence states, which generally rely on the number of electrons it shows to various other aspects.
For nitrogen, its most secure valence state is -3, such as in ammonia (NH3) and gallium nitride (GaN). Nonetheless, nitrogen can additionally create a positive valence state by shedding electrons, such as the +5 valence state in nitric acid (HNO3). In addition, nitrogen can also develop a valence state in between -3 and +5, such as the +3 valence state in nitrous acid (HNO2) or the +1 and +2 valence states in some natural substances.
Secondly, let’s speak about silicon nitride:
In the semiconductor industry, silicon nitride utilized in different applications is frequently non-uniform, generally stood for by SiNx. SiNx is an amorphous product whose homes depend upon the ratio of nitrogen to silicon, that is, the worth of x. When the worth of x adjustments, the physical and chemical residential properties of silicon nitride will certainly additionally alter. Silicon nitride does be available in many types, consisting of Si3N4, Si2N2, TRANSGRESSION, etc

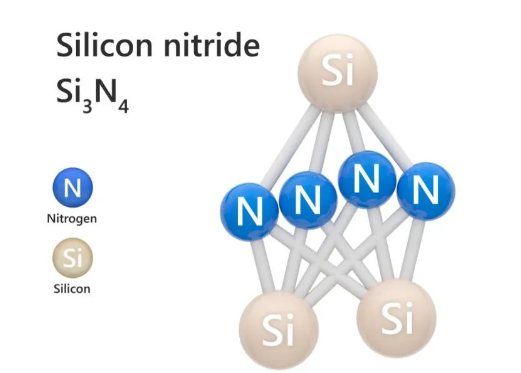

( structure of Si3N4)
Si3N4 is a crystalline material, which indicates that its silicon and nitrogen proportion is fixed. When the value of x is equal to 4/3, SiNx amounts to Si3N4. However, in useful applications, SiNx is frequently non-uniform, and its silicon and nitrogen proportion can be regulated by altering the criteria of the PVD or CVD procedure.
2. What is the role of SiNx in chip production?
Silicon nitride has superb insulation residential properties, and its resistivity can be as high as 10 ^ 14 Ω · centimeters, far exceeding some common shielding products such as silicon oxide (SiO2). Its reduced dielectric constant makes it a perfect isolation layer in microwave and RF applications. The silicon nitride layer likewise plays a role in obstructing the diffusion of pollutants in the chip. It can avoid dopants such as boron and phosphorus from transforming gadget qualities through diffusion. Additionally, it can additionally protect against the diffusion of steel ions to prevent mistakes such as brief circuits.
The superb thermal stability of silicon nitride is figured out by its unique chemical homes and crystal framework. It can continue to be secure in a high-temperature setting without chemical disintegration or physical form modifications like other materials. That’s because in the crystal framework of silicon nitride, each silicon atom is combined with 4 nitrogen atoms in the kind of a tetrahedron, and each nitrogen atom is additionally integrated with 4 silicon atoms in the kind of a tetrahedron. This framework makes the crystal latticework of silicon nitride very secure and hard to deform. Consequently, it is utilized as a gate-insulating layer when manufacturing high electron flexibility transistors (HEMTs).

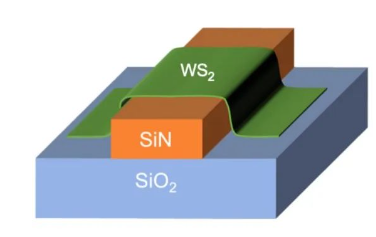

( role of SiNx in chip manufacturing)
3. What are the advantages of SiNx over SiO2?
Much better thermal stability, harder hardness, and harder to etch.
